VLF Testing with Partial Discharge (PD)

VLF testing with partial discharge (PD) measurement helps assess medium voltage cable insulation and investigate possible defects in cables, joints and terminations. Sachu Technologies supports industrial plants, utilities, substations and EPC contractors with cable testing for commissioning, maintenance planning and asset reliability across India.

Request a Quote

Sachu Technologies provides VLF testing with partial discharge (PD) to assess the insulation condition of medium voltage power cables. This service helps industrial plants, utilities and maintenance teams find signs of possible insulation defects and make better maintenance decisions.

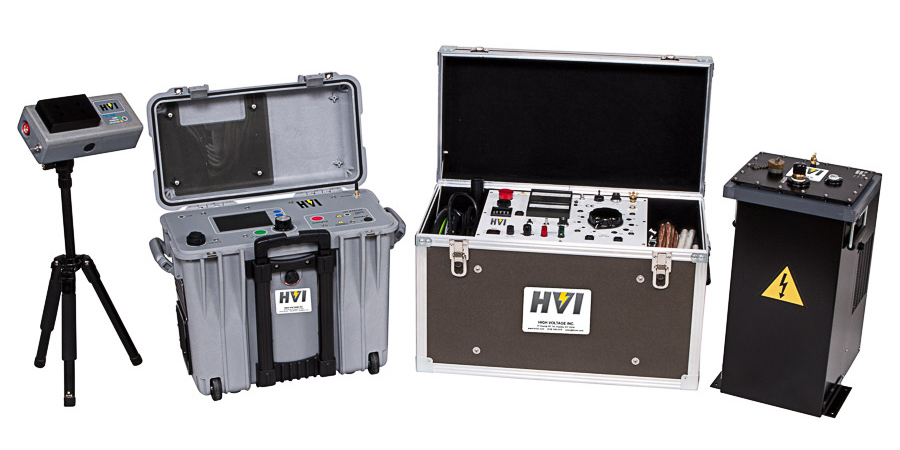

Very Low Frequency (VLF) testing applies an alternating test voltage at a frequency much lower than the normal power frequency. It helps assess how cable insulation responds to the applied voltage. When combined with partial discharge measurement, it also helps detect small electrical discharges linked to possible insulation defects.

Partial discharge occurs when a small area of an insulation system experiences an electrical discharge without a complete breakdown between conductors. Such activity may be linked to voids, insulation damage, cable joints or terminations.

VLF testing with PD measurement provides useful information about cable condition. It helps engineers investigate possible defects, plan maintenance and decide whether further testing is needed. The test method and voltage must suit the cable type, voltage rating, condition and test purpose.

Why Is VLF Testing with PD Important?

Cable insulation can weaken over time due to ageing, moisture, electrical stress or installation problems. Defects may also develop in cable joints and terminations.

Basic electrical checks may not show the location or type of every insulation defect. Therefore, VLF testing with PD measurement can provide additional information about cable condition.

The service supports cable commissioning where required, fault investigation, maintenance planning and checks after selected repairs. In addition, recorded results can help engineers compare future readings when suitable baseline data is available.

What Problems Can VLF and PD Testing Help Identify?

Depending on the cable system and test method, the assessment can help identify:

Partial discharge activity linked to possible insulation defects.
Signs of insulation deterioration in medium voltage cables.
Possible defects in cable joints and terminations.
Discharge activity linked to voids or electrical treeing, where detectable.
Surface discharge around cable accessories, where the test setup allows detection.
Differences in discharge activity between cable sections.
Cable circuits that need further testing or maintenance.

Test results must be reviewed in context. Electrical noise, cable design and test conditions can affect readings. Also, a test cannot guarantee that every defect will be detected or predict the exact remaining life of a cable.

Equipment Covered Under VLF Cable Testing

Sachu Technologies can assess suitable cable systems and accessories based on the agreed scope and test equipment.

Medium voltage underground power cables.
XLPE-insulated power cables.
Suitable EPR-insulated cables.
Cable joints and jointing systems.
Indoor and outdoor cable terminations.
Industrial power distribution cables.
Utility and substation feeder cables.
Cables tested after installation, repair or accessory replacement.

The correct test method depends on the cable type, insulation, voltage rating and condition. The testing team should agree on the test procedure before starting work.

Applications of VLF Testing with Partial Discharge

Cable commissioning: Checks suitable new or repaired cable systems when the approved commissioning procedure requires testing.

Cable condition assessment: Helps engineers review the condition of existing cable networks.

Maintenance planning: Provides information to help prioritise cables for further checks or repair.

Fault investigation: Supports the investigation of suspected cable insulation problems.

Joint and termination assessment: Helps identify discharge activity around cable accessories when the measurement method allows it.

Post-repair testing: Helps assess cable condition after selected repairs or accessory replacement.

Asset management: Provides test records for future comparison and maintenance planning.

Industries That Use VLF and PD Testing

The service is relevant to organisations that depend on medium voltage power cables.

Manufacturing plants and industrial facilities.
Power plants and captive power installations.
Electricity utilities and distribution networks.
Electrical substations and switchyards.
Oil, gas and process industries.
Cement, steel and heavy industries.
Data centres and large commercial buildings.
Hospitals, campuses and institutional facilities.
Renewable energy installations.
EPC contractors and electrical installation companies.

When Should VLF Testing with PD Be Performed?

The need for testing depends on the cable condition, service history and purpose of the assessment. Common reasons include:

Before energisation, when the commissioning plan requires it.
After cable installation or jointing work.
After cable repair or termination replacement.
When engineers suspect insulation defects.
During planned checks of critical cable circuits.
When earlier test results indicate a need for further investigation.

Testing frequency should suit the cable system and maintenance plan. A withstand test may not suit every aged or damaged cable. Therefore, engineers should select the method after reviewing the cable condition and relevant technical guidance.

Benefits for Maintenance and Asset Reliability

VLF testing with PD measurement helps maintenance teams make informed decisions about cable condition.

Helps assess cable insulation condition.
Detects discharge activity linked to possible defects.
Supports defect location when the test method allows it.
Helps prioritise maintenance work.
Provides information about cable joints and terminations.
Creates records of cable condition at the time of testing.
Supports condition-based maintenance.
Helps engineers plan further tests, repairs or replacement.

The value of the service depends on the test method, measurement quality and correct interpretation. Testing supports maintenance decisions but cannot guarantee that every defect will be found or every cable failure prevented.

VLF Testing with PD Services Across India

Sachu Technologies provides electrical testing and diagnostic services across India, subject to project requirements, site conditions and service availability.

We serve enquiries from Hyderabad, Mumbai, Delhi, Bengaluru, Chennai, Pune, Ahmedabad, Kolkata, Gurugram and Noida. We also welcome enquiries from Visakhapatnam, Vijayawada, Coimbatore, Surat, Vadodara, Nagpur, Jaipur, Kochi, Bhubaneswar and other industrial locations.

Industrial plants, utilities, substations, EPC contractors and facility management teams can contact Sachu Technologies to discuss VLF testing with partial discharge measurement for commissioning, maintenance and cable condition assessment.

Our Approach

Step 1: Review the Testing Requirement

We review the cable voltage rating, insulation type, cable length, joints, terminations and test objective. We also check available technical documents and previous test records.

Step 2: Plan the Test and Safety Measures

We select a suitable test method based on the cable details and purpose of the assessment. The team reviews isolation, earthing, access, discharge and site safety requirements before testing.

The VLF test settings and PD measurement method must suit the cable system and agreed procedure.

Step 3: Check the Cable and Test Points

We confirm the cable identity, available test points and accessories within the agreed scope. We also carry out relevant preliminary checks to decide whether the planned test is suitable.

If site conditions or cable condition may affect the results, we review the test plan before proceeding.

Step 4: Perform VLF Testing and PD Measurement

We connect suitable testing equipment according to the agreed test arrangement. The team applies the specified test conditions and records the results and observed discharge activity.

Where the equipment and setup allow, the measurements may help identify areas linked to possible insulation defects. We also consider electrical noise and other factors that may affect the readings.

Step 5: Review and Analyse the Results

We compare the recorded measurements with the agreed procedure and available technical criteria. The review considers discharge activity, measurement quality, cable details and previous test records.

We explain the findings and note any limits that may affect the assessment. If the results are unclear, we may recommend further investigation.

Step 6: Prepare the Report and Recommendations

We prepare a technical report covering the work carried out, test method, results and observations. Where supported by the measurements, we identify areas that need further checks.

Finally, we recommend suitable next steps, such as additional testing, closer monitoring or corrective work. The asset owner can use the report to support maintenance planning.

Frequently Asked Questions

1. What is VLF testing with partial discharge?

VLF testing with partial discharge measures how cable insulation responds to a very low frequency alternating test voltage and checks for local electrical discharge activity. It helps engineers assess medium voltage cable condition and investigate possible insulation defects.

2. Why is VLF testing with PD required?

The service helps assess cable insulation and investigate possible defects in cables, joints and terminations. Engineers use the findings to support commissioning, maintenance planning and further diagnostic checks.

3. Which cables can be tested using VLF and PD measurement?

Suitable medium voltage cables, including many XLPE-insulated cables and selected EPR-insulated cables, may be tested using compatible methods. The correct procedure depends on cable design, voltage rating, condition and equipment compatibility.

4. What is the difference between VLF testing and partial discharge testing?

VLF withstand testing checks how cable insulation responds to an applied test voltage. Partial discharge testing measures local electrical discharges that may indicate insulation defects. When suitable, both methods provide different but useful information about cable condition.

5. Does Sachu Technologies provide VLF testing with PD across India?

Sachu Technologies accepts enquiries for services across India, including Hyderabad, Mumbai, Delhi, Bengaluru, Chennai, Pune, Ahmedabad, Kolkata, Gurugram and Noida. Service arrangements depend on the project scope, site conditions and equipment requirements.

Plan Your VLF Cable Testing and Partial Discharge Assessment

Need to assess medium voltage cable insulation or investigate possible partial discharge activity? Contact Sachu Technologies to discuss your cable details, site requirements and testing objectives. We can review the scope and help determine a suitable test approach.
