VLF Tan Delta Testing
Sachu Technologies provides VLF Tan Delta Testing for medium-voltage cable insulation assessment at industrial plants, substations, and electrical facilities across India.
Request a Quote
Sachu Technologies provides VLF Tan Delta Testing services for medium-voltage and high-voltage power cables across India. The service helps assess the insulation condition of installed cable systems.
VLF Tan Delta testing measures the dielectric loss of cable insulation at very low frequency. Therefore, the test can help identify changes in insulation condition. It can also support maintenance teams when planning cable inspection and maintenance.
Our team can test cable systems at industrial plants, substations, power facilities, commercial sites, and other electrical installations. In addition, testing can be planned during scheduled maintenance or cable condition checks.
The test provides measurement data that can be reviewed along with cable age, operating history, previous test results, and other available information. Furthermore, this approach can help identify cable sections that may need closer investigation.
We follow a clear process throughout the service. First, we inspect the cable system. Next, we perform the VLF test and record the results. Finally, we analyze the data and provide a report with suitable recommendations.
Our Approach
1. Cable and Site Review
First, we review the cable information and site conditions. We check the cable type, voltage rating, length, and installation details.
We also review previous test reports when available. Therefore, we can consider earlier results during the assessment.
2. Test Preparation
Next, we prepare the cable for testing. We isolate the cable from the electrical system before starting the test.
We also check the test area and equipment connections. This step helps the team prepare the test in a controlled manner.
3. VLF Tan Delta Test

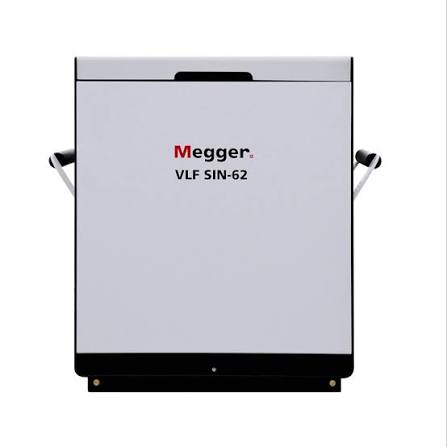

Then, we apply the required VLF test voltage to the cable. The test equipment measures the tan delta values during the test.
We record the readings for further review. In addition, we note relevant test conditions during the measurement.
4. Result Analysis
After testing, we review the recorded values. We also consider cable age, service history, and previous results when available.
Therefore, the analysis provides a better view of the cable insulation condition. However, we avoid judging cable condition from one value alone.
5. Test Report
Next, we prepare the test report. We include the recorded readings and relevant observations.
The report gives the maintenance team a clear record of the test. In addition, it can support future cable maintenance decisions.
6. Recommendations
Finally, we provide recommendations based on the test findings. The recommendations can include continued monitoring, further testing, maintenance, or additional investigation.
The exact recommendation depends on the test results and available cable information.
Frequently Asked Questions
1. What is VLF Tan Delta Testing?
VLF Tan Delta Testing is a cable insulation diagnostic test. It uses very low frequency voltage to measure dielectric loss in the insulation.
2. What does tan delta indicate?
Tan delta indicates dielectric loss in cable insulation. Therefore, changes in the measured value can provide information about insulation condition.
3. Which cables can be tested using VLF Tan Delta Testing?
The test is commonly used for medium-voltage power cables. In addition, suitable higher-voltage cables may be tested when the test equipment and procedure support the cable system.
4. Why is VLF used for cable testing?
VLF allows cable testing at a very low frequency. As a result, the required test equipment can be suitable for field testing of long cable systems.
5. Can VLF Tan Delta Testing be performed on existing cables?
Yes. VLF Tan Delta Testing can be used for existing cable systems. Furthermore, the results can support cable condition assessment and maintenance planning.
Discuss Your VLF Tan Delta Testing
Sachu Technologies provides VLF Tan Delta Testing for power cable insulation assessment at industrial plants, substations, and electrical facilities across India.
