Cable Fault Location

Cable Fault Location Services

Sachu Technologies provides Cable Fault Location Services for industrial, utility, commercial and infrastructure power cable systems across India. The service helps maintenance teams identify the position of a cable fault and plan the next stage of investigation or repair.

Power cables can develop faults due to insulation deterioration, mechanical damage, ageing, joint problems, termination issues or site conditions. However, finding the exact fault position can be difficult, especially when cables run underground or cover long distances.

Therefore, cable fault location uses a systematic testing and diagnostic process to narrow down the affected section. The process can first identify the fault condition and estimate its distance. Then, where technically suitable, further investigation can help pinpoint the physical fault location.

Why Cable Fault Location Is Required

When an underground cable develops a fault, maintenance teams need more than confirmation that the cable has failed. They also need to know where the fault is located.

Without fault-location information, teams may spend considerable time checking the cable route or excavating multiple areas. In contrast, a structured fault-location process narrows the search area and supports targeted repair planning.

As a result, maintenance teams can focus their investigation on the suspected cable section instead of checking the complete route.

Types of Cable Faults

Cable systems can develop different fault conditions. Therefore, the investigation method depends on the electrical characteristics of the fault, cable construction and site conditions.

Cable fault location can support the investigation of:

• Phase-to-earth faults
• Phase-to-phase faults
• Short-circuit faults
• Open-circuit faults
• Conductor discontinuity
• Insulation-related faults
• Cable joint faults
• Termination-related faults
• Intermittent fault conditions
• Faults associated with mechanical cable damage

Because each fault behaves differently, engineers need to understand the fault condition before selecting an appropriate locating approach.

Cable Fault Pre-Location

Pre-location helps estimate the distance between the test point and the suspected fault. Consequently, the maintenance team can reduce the length of cable route that requires detailed investigation.

The suitable method depends on factors such as cable construction, cable length, circuit configuration and fault characteristics. Therefore, the available cable information plays an important role during the investigation.

Cable Fault Pinpointing

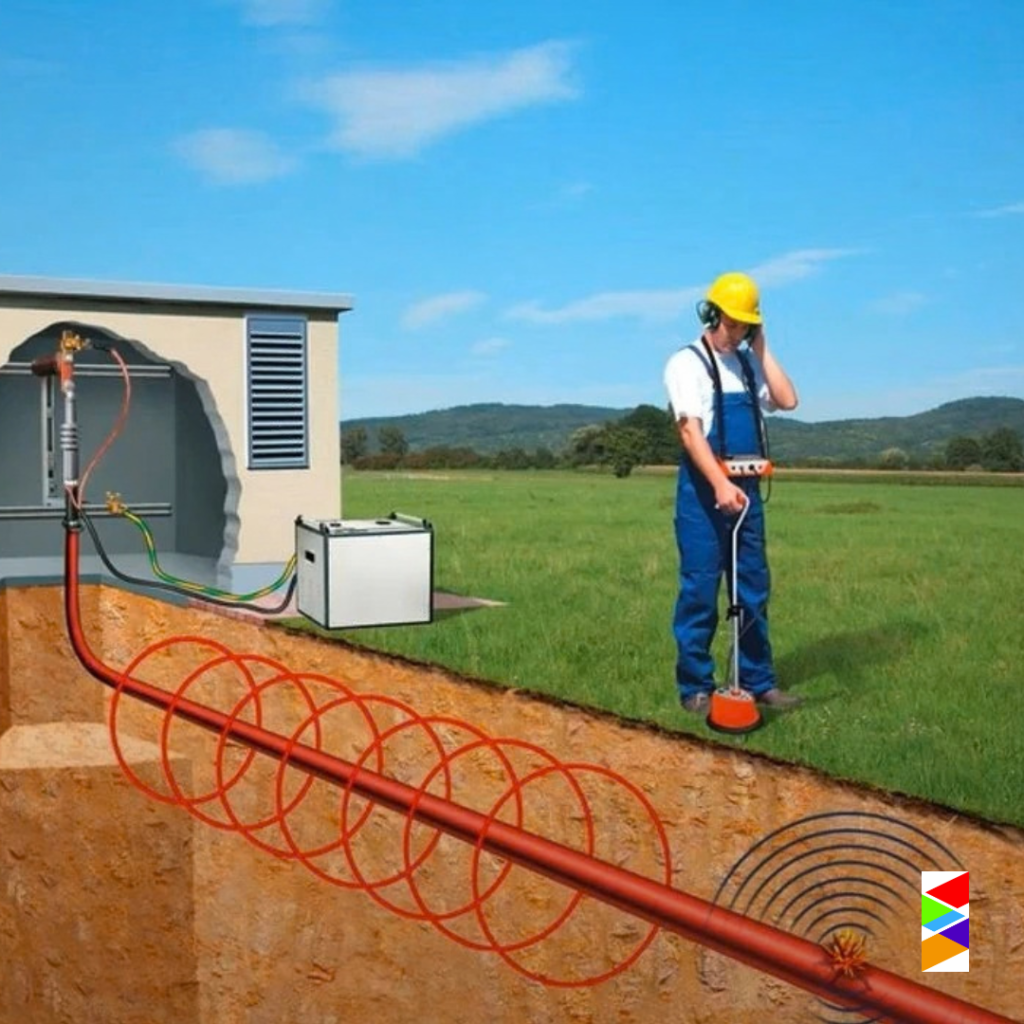

After narrowing down the suspected fault area, the next stage may involve fault pinpointing. This process focuses on identifying the physical fault position along the cable route.

However, the appropriate technique depends on the cable system, fault characteristics, accessibility and site conditions. For this reason, fault pre-location and pinpointing often form different stages of the overall cable fault investigation.

Applications of Cable Fault Location

Cable fault location supports troubleshooting across many electrical installations, including:

• Industrial plants
• Manufacturing facilities
• Power plants
• Substations
• Utility networks
• Commercial facilities
• Infrastructure projects
• Underground electrical distribution systems
• Plant power distribution networks
• EPC projects

It can also support maintenance teams when a cable circuit develops an unexplained electrical fault and the physical fault position remains unknown.

Information Required for Cable Fault Investigation

Good cable information can make the investigation more systematic. Therefore, where available, customers should provide:

• Cable type
• Approximate cable length
• Voltage class
• Cable route details
• Number and location of joints
• Circuit configuration
• Available cable drawings
• Previous test information
• Details of the reported fault

Even when some information is unavailable, the initial review can help determine the next practical steps.

Benefits of Cable Fault Location

A systematic cable fault location service helps maintenance teams narrow down the suspected fault section. Moreover, it provides useful information for planning excavation, investigation and repair.

Key benefits include:

• More focused cable fault investigation
• Identification of the suspected fault section
• Fault-distance estimation where applicable
• Support for accurate fault pinpointing
• Reduced unnecessary excavation
• Better repair planning
• Improved troubleshooting efficiency
• Documented findings for maintenance review

Therefore, cable fault location can become an important part of troubleshooting underground and other power cable systems.

Cable Fault Location Services Across India

Sachu Technologies provides Cable Fault Location Services across India for industrial plants, utilities, substations, power facilities, commercial installations and infrastructure projects.

Services can be discussed for requirements in Hyderabad, Mumbai, Delhi, Bengaluru, Chennai, Pune, Ahmedabad, Kolkata, Gurugram and Noida, as well as other industrial locations across India. These locations match the PAN-India SEO structure specified for Sachu service pages.
