Insulation Resistance Testing
Insulation Resistance Testing helps assess electrical insulation condition in cables, motors, transformers, switchgear, panels, and other electrical assets. It supports preventive maintenance, commissioning, troubleshooting, and condition assessment by providing measurable insulation resistance data.
Request a Quote
Insulation Resistance Testing
Electrical insulation helps separate conductors and prevents unwanted current flow between energized parts and earth. However, insulation can deteriorate because of ageing, moisture, contamination, excessive heat, vibration, mechanical stress, and harsh operating conditions.
Insulation Resistance Testing measures the resistance offered by electrical insulation. Therefore, it provides useful information about the condition of insulation in cables, motors, transformers, switchgear, panels, generators, and other electrical equipment.
Sachu Technologies provides Insulation Resistance Testing Services across India for industrial plants, utilities, substations, commercial facilities, EPC projects, and other electrical installations.
Depending on the equipment and test objective, our engineers select suitable test parameters and measurement methods. The results can support preventive maintenance, commissioning, troubleshooting, and electrical asset condition assessment.
Why Is Insulation Resistance Testing Important?
Electrical insulation may deteriorate gradually without showing obvious external signs. Consequently, equipment may remain operational even when its insulation condition has started to decline.
Regular Insulation Resistance Testing provides measurable information about insulation condition. Moreover, when maintenance teams compare current readings with previous results taken under similar conditions, they can identify changes and investigate unusual deterioration.
The testing can help:
- Identify low insulation resistance
- Detect possible moisture or contamination effects
- Support preventive maintenance programs
- Establish baseline insulation readings
- Compare insulation condition over time
- Investigate suspected insulation problems
- Check equipment after maintenance or repair
- Support commissioning activities
- Assess equipment before re-energization
- Improve electrical asset maintenance planning
Equipment Covered Under Insulation Resistance Testing
Depending on equipment design, isolation requirements, manufacturer recommendations, and site conditions, insulation resistance measurements can be performed on:
- Power cables
- Control cables
- Electric motors
- Generators
- Transformers
- Switchgear
- Electrical panels
- Busbar systems
- Circuit breakers
- Electrical wiring
- Distribution circuits
- Industrial electrical equipment
- Other suitable insulated electrical assets
When Should Insulation Resistance Testing Be Performed?
The appropriate testing interval depends on equipment type, operating conditions, maintenance strategy, environmental exposure, and manufacturer recommendations.
However, organisations commonly carry out Insulation Resistance Testing:
- During new equipment commissioning
- As part of preventive maintenance
- Before energizing equipment after a long shutdown
- After major electrical maintenance
- Following equipment repair
- When moisture ingress is suspected
- After abnormal heating or electrical events
- During troubleshooting of electrical faults
- Before returning repaired equipment to operation
- When establishing baseline condition data
- During periodic electrical condition assessments
Applications of Insulation Resistance Testing
Insulation Resistance Testing can support electrical maintenance programs in many types of facilities, including:
- Manufacturing plants
- Power plants
- Electrical substations
- Utilities
- Data centres
- Commercial buildings
- Infrastructure facilities
- Process industries
- Pharmaceutical facilities
- Steel and cement plants
- Oil and gas facilities
- Renewable energy installations
- EPC and commissioning projects
Insulation Resistance Testing Across India
Sachu Technologies provides Insulation Resistance Testing Services for industrial, utility, commercial, infrastructure, and EPC applications across India.
Our service coverage includes Hyderabad, Mumbai, Delhi, Bengaluru, Chennai, Pune, Ahmedabad, Kolkata, Gurugram, and Noida, along with other industrial locations across India.
Share your site location, equipment type, voltage level, number of assets, shutdown availability, previous test records, and required scope. Our team can then review the requirement and discuss suitable testing coverage.
Our Approach
1. Review the Testing Requirement
First, our team reviews the equipment type, voltage level, operating history, available technical information, and purpose of testing. This helps establish an appropriate testing plan.
2. Confirm Equipment Isolation
Next, the equipment must be properly isolated and prepared for testing. Our engineers coordinate with the site team to confirm suitable testing and safety conditions before measurements begin.
3. Select Suitable Test Parameters
We select test parameters according to the equipment type, manufacturer guidance, available technical information, and test objective. Therefore, the same test conditions are not automatically applied to every electrical asset.
4. Perform Insulation Resistance Measurements

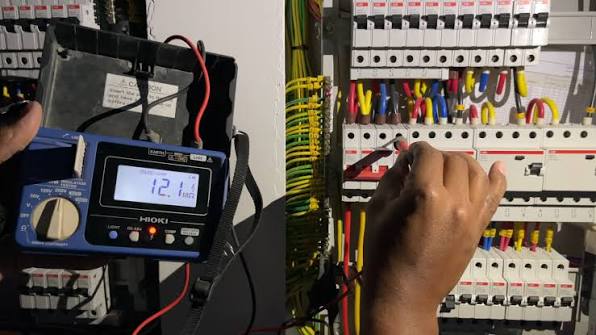

Our engineers carry out the required measurements using suitable insulation resistance test equipment. Depending on the asset, measurements may include conductor-to-conductor, phase-to-phase, winding-to-earth, or conductor-to-earth testing.
5. Review and Record Results
We record the measured values along with relevant test information. Where previous records are available, the results can also be compared to identify significant changes or trends.
6. Provide the Test Report
Finally, Sachu Technologies prepares a structured test report containing the recorded results and relevant observations. The report can support maintenance planning, commissioning documentation, troubleshooting, and future condition comparison.
Frequently Asked Questions
1. What is Insulation Resistance Testing?
Insulation Resistance Testing measures the resistance offered by electrical insulation between conductors or between a conductor and earth. The measurement helps maintenance teams assess insulation condition and identify unusually low resistance that may require further investigation.
2. Which electrical equipment can undergo Insulation Resistance Testing?
The test is commonly used for cables, motors, generators, transformers, switchgear, panels, electrical circuits, and other suitable insulated electrical equipment. However, the test method and parameters depend on the equipment design and application.
3. What causes low insulation resistance?
Moisture, contamination, ageing, excessive temperature, mechanical damage, environmental exposure, and insulation deterioration can affect resistance values. Therefore, engineers should consider the measured value together with equipment condition and test conditions.
4. Is one insulation resistance reading enough?
A single measurement provides useful information about insulation condition at the time of testing. However, comparing readings taken over time under similar conditions can provide additional information about changes in insulation performance.
5. Does Sachu Technologies provide Insulation Resistance Testing across India?
Yes. Sachu Technologies provides Insulation Resistance Testing Services for industrial plants, utilities, substations, commercial facilities, EPC projects, and other electrical installations across India, subject to project scope and site requirements.
Need Insulation Resistance Testing for Your Electrical Assets?
Assess insulation condition as part of your electrical maintenance, commissioning, or troubleshooting program. Sachu Technologies provides Insulation Resistance Testing for cables, motors, transformers, switchgear, panels, and other suitable electrical equipment across India.
